Lego Boat
Lego Created, Solidworks
Process
During the process of creating this rendering, I first created the design using Legos to create a model of a boat that would than be rendered in Solidworks.

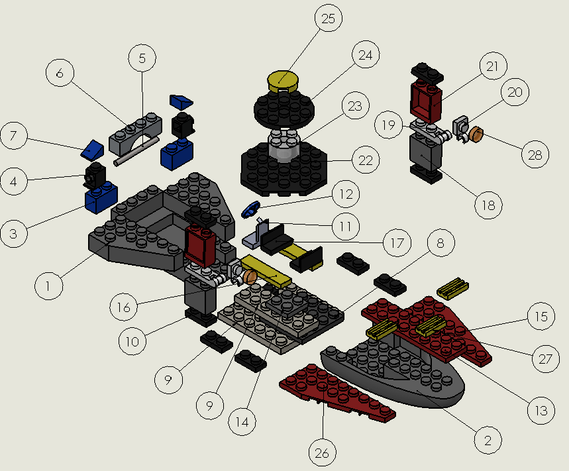

On the image to the right, are the different Lego pieces that were used to create the model in the physical model and in Solidworks. There were a total of 28 different pieces of Legos that were used to design this piece.
After the model was physically made, a sketch of the boat was made ad inked, to preserve a visual incase a problem were to occur with the Lego model.

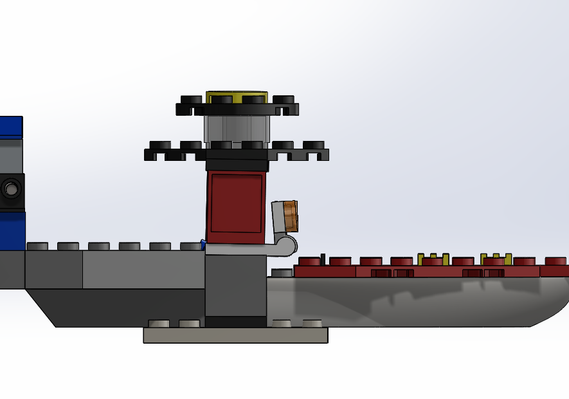

A different view of the boat to show the different levels of Lego pieces stacked and used in the build.

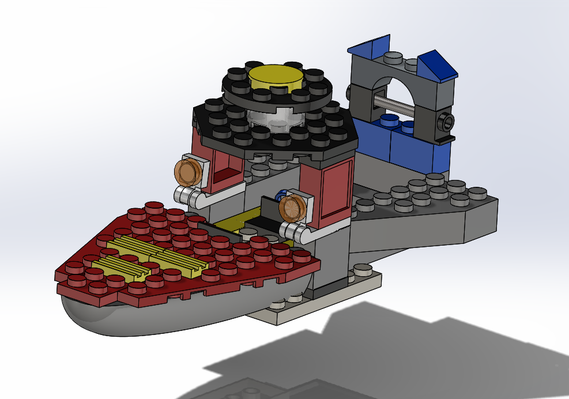

The full 3D Rendering of the boat pieced together shown in Solidworks. The boat contains an overhead that would cover the users from weather related events, and they have seating under it as well as by the front of the boat.
